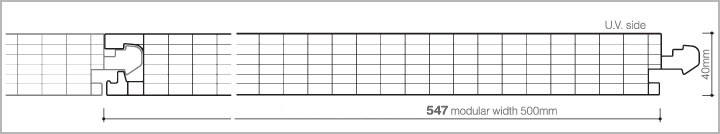

ArcoPlus®547 is a versatile modular system of 7 walls with a thickness of 40mm and a width of 19.68"
Try our wall configurator now!
CONFIGURE NOW
Buy now and get the order by June 22nd

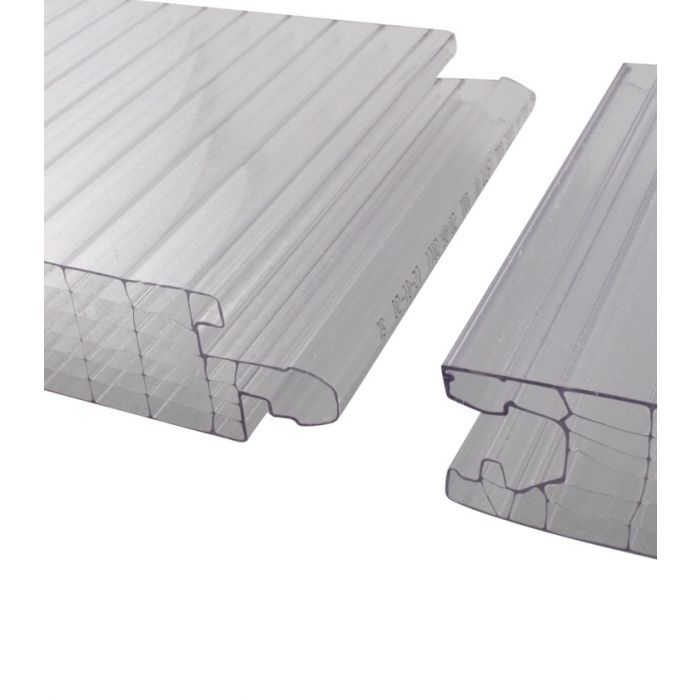

The arcoPlus®547 is the perfect solution for vertical application like windows, walls and glazing. With its tongue and groove connection, the panel can be installed without the use of metal reinforcement frames ensuring watertight seal. For installations exceeding 2.2m a section-breaker profile, to which the arcoPlus® can then be fixed, must be installed to give the system the necessary resistance.
Try our wall configurator now!
CONFIGURE NOW
Thickness (mm) | 40mm |
---|---|
Structure | 7 Walls |
Weight (lbs/sf) | 1.5500 |
Light Transmission | Clear 67% |
R-Factor | 5.31 |
U-Value | 0.188 |
Manufacturer | GallinaUSA |
